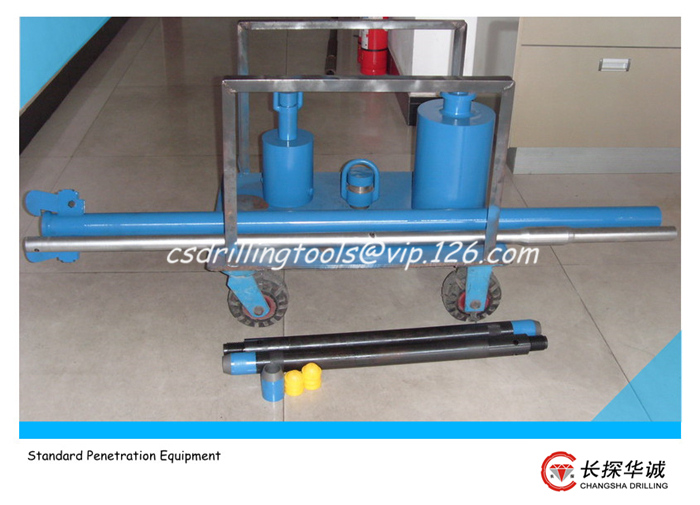

Standard Penetration Equipment (SPT)

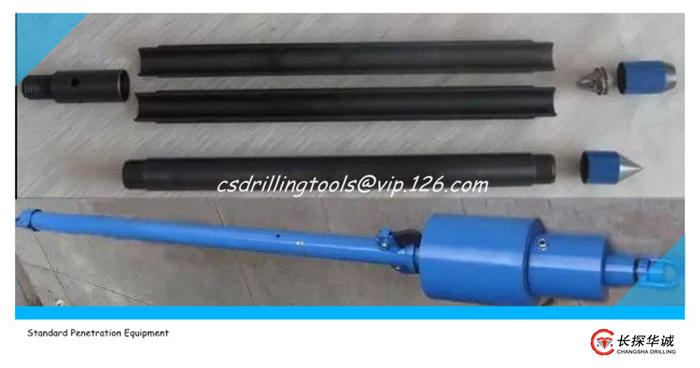

In order to carry out the Standard Penetration Test (SPT) to BS 1377:Part 9:1990. The Auto Trip Hammer, SPT Drive Rods and a Split Tube Sampler are worked together.

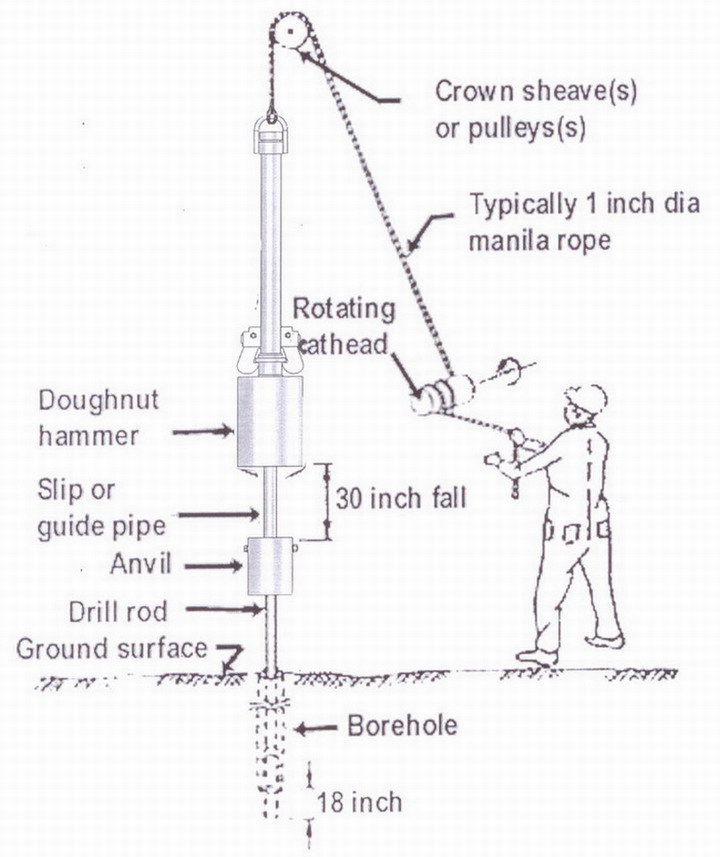

The basic operation of the complete set Standard Penetration Equipment are like the following sketch shows.
