Product name : WTY-30A Light Drilling Machine
Item : 20131115145633
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

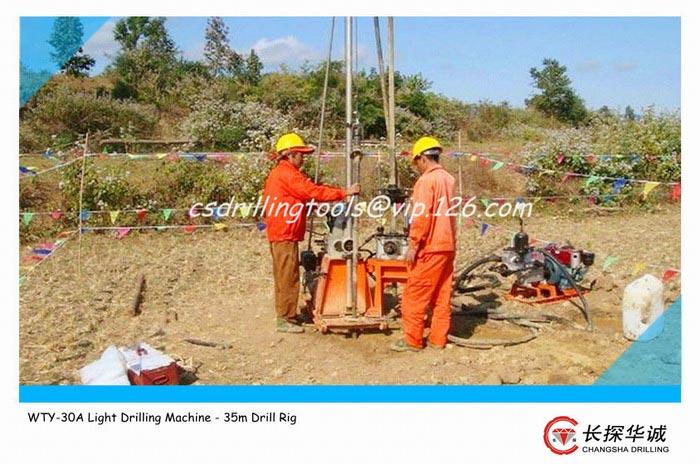

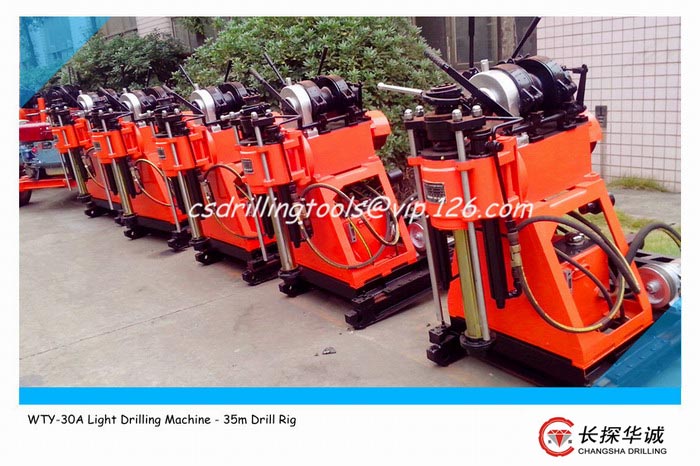

WTY-30A Light Drilling Machine

WTY-30A is designed for general prospecting, geologic structure prospecting, road and building construction prospecting, blasting hole drilling and other drilling projects
Specifications
Light, easy maintenance, less labor.
Rotary table can be stepped away from the drilling hole, facilitate the drilling task

Drilling rig and mud pump application range:
1): Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2): Exploration: Coal mining exploration, Ore exploration;
3): Water well: Small hole diameter water well drilling;
4): Foundation piling: Small-diameter hole foundation piling drilling


Basic Parameters

Drilling depth

35 m / 15 m

Opening hole diameter

110 mm

Drill pipe diameter

33.5 mm

Weight (without the engine)

290 kg

Dimension (L * W * H)

1510 * 600 * 1055 mm

Rotary Table

Rotary Speed

136 – 338 – 578 r/min

Maximum Torque

350 N * m

Feeding Travel

400 mm

Maximum Cylinder Feeding Force

8,000 N

Maximum Cylinder Lifting Force

10,000 N

Lifter

Lifting Capacity

4,000 N

Bobbin Line Speed, 2 Layers

0.46 – 1.15 – 0.97 m/s

Bobbin Diameter

90 mm

Rope Diameter

8 mm

Rope Capacity

18 m

Drilling Tower

Type

Single Seamless Pipe

Height

5.6 m

Oil Pump

Type

Gear Oil Pump

Displacement

14Ml/r

Rated Speed

2500 r/min

Rated Pressure

20 MPa

Maximum Pressure

25 MPa

Power (electric motor)

Rated power

7.5 KW

Rated Speed

1440 r/min

Weight

81 kg

Powder (diesel engine)

Rated powder

6.47 KW

Rated Speed

2200 r/min

Weight

95 kg
