Changsha Drilling Machinery CO., LTD

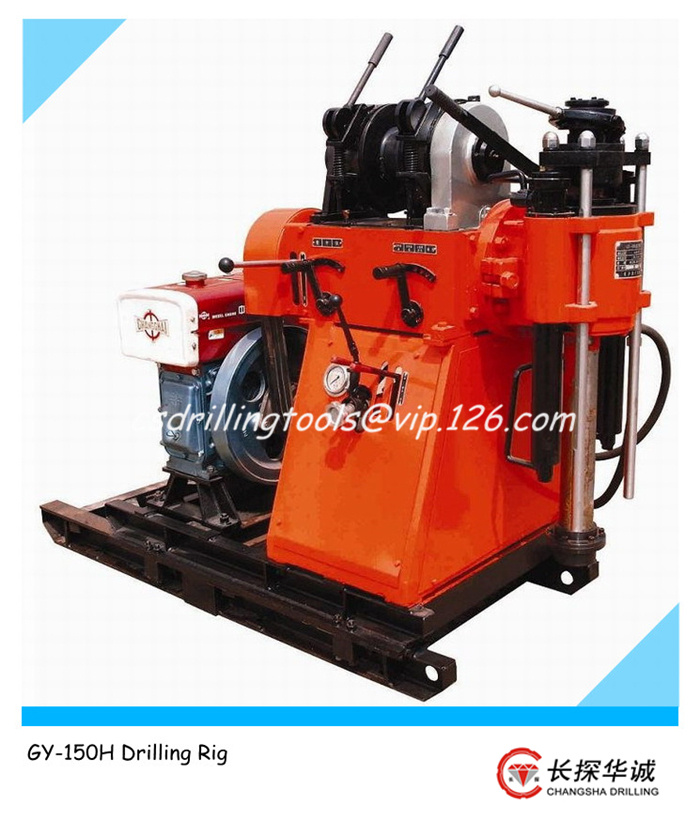

Product name : GY-150H Drilling Rig
Item : 2013112513132
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 GY-150H Drilling Rig


Drilling rig and mud pump application range:
1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling


Technical Figures

Basic Parameters

Drilling depth (@drilling diameter)

150m(@47mm), 100m(@76mm), 20m(@300mm)

Rotary Table

Rotate Speed

60, 200, 385, 610, 1100 r/min

Maximum torque

1800 N*m

Feeding travel

600 mm

Maximum cylinder feeding force

30 KN

Maximum cylinder lifting force

20 KN

Hoist

Bobbin Diameter

140mm

Rope Diameter

11mm

Rope Capacity(7 floor)

25m

Lifting Capacity(single pipe)

24KN

Bobbin line speed (the two layer)

0.2, 0.75, 1.26, 2.8 m/s

Power

Type

Diesel (11KW)

Rated speed

1500r/min

Dimensions

2050*700*1420mm

Weight

640kg
