Product name : WTY-30 Light Drilling Machine
Item : 2013111515012
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

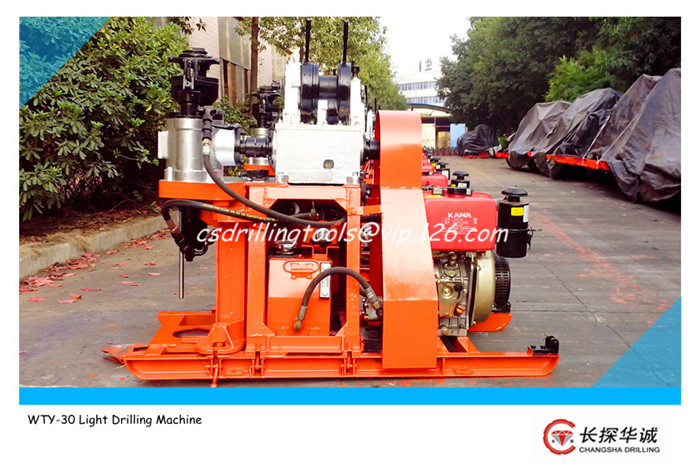

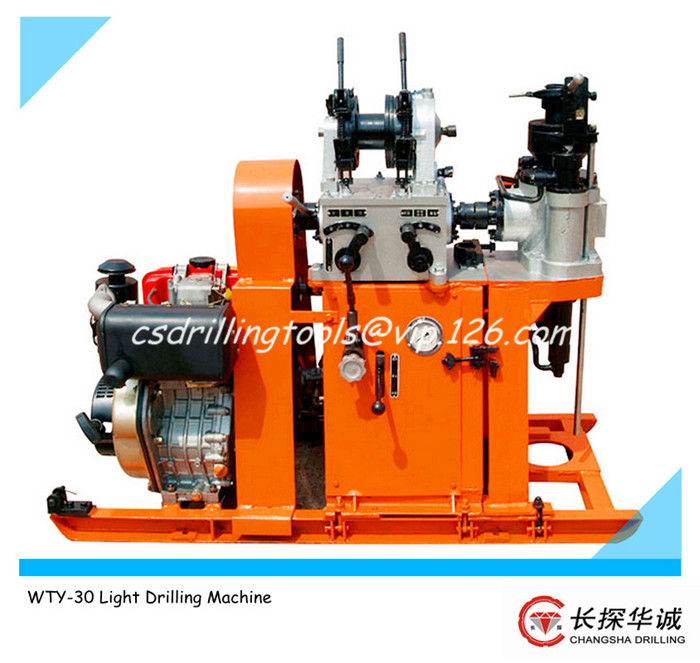

WTY-30 Light Drilling Machine

QWT-30 Light Drilling Machine is a light prospecting drilling machine developed upon model WTY-30, it was designed for general prospecting geologic structure prospecting, road and building construction prospecting, blasting hole drilling other drilling project

Features:
1): Adopted optimum technical preference, high mechanization, low labour intensity and high work efficiency.
2): the rig used a high quality engine and the weight is light. Transmission mechanism in drilling machine gear box makes rapid hole clean up possible
3): in its rotary talbe, the newly installed bevel gear makes it running more smoothly, more adequate lubricate and long working life. The revolving plate could be moved away from the hole with the front frame to ensure a wider working room. Multiple drilling modes selectable
4): oil hydraulic driving equipped ensures easy handling and high efficiency. High pressure wheel oil pump is used for improving the lifting capacity. This is more useful for dealing with the accidents in the hole
5): optimized structure, small volume, light weight, easy to remove and install, convenient for moving assembling and repairing. The machine can be divided into five parts and the weight of each part will be less than 60kg
Overall, in addition to keep the main advantages of WTY-30, this machine is much lighter in weight, compacter in on structural, easier to remove and install

Technical figures

1. DRILLING CAPABILITY

Drilling Dia(mm)

70, 100

Drilling Depth(m)

35, 15

Drilling Rod Dia(mm)

33.5

2. ROTARY TABLE

Speed(rpm)

136, 338, 578 r/m

Max Torque

350N·m

Feeding Travel

400mm

Max Feeding Force

8KN

Max Lifting Force

10KN

3. Hoist

Bobbin Dia

φ90mm

Bobbin Rope Capacity

18m

Max Hoisting(Single Rope)

4KN

Max Hoisting Speed Single Rope (2nd Layer) m/s

0.46, 1.15, 1.97

4. Oil Pump

Model

CBW-F314-ALP Gear Oil Pump

Displacement

14mL/r

Rated Speed

2500r/min

Rated Pressure

20Mpa

Max Pressure

25Mpa

5. Engine

Electric Motor

Y132M-4, 7.5KW, 1440r/min, 81kg

Diesel Engine

CHANGCHAI R185, 6.47KW, 2200r/min, 95kg

6. Rig Dimension

1510×600×1055mm

7. Weight(Engine not included)

290kg
