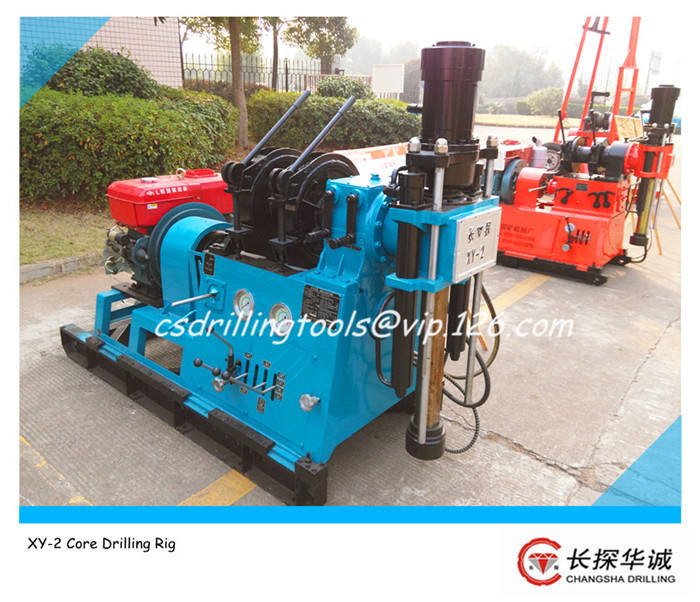

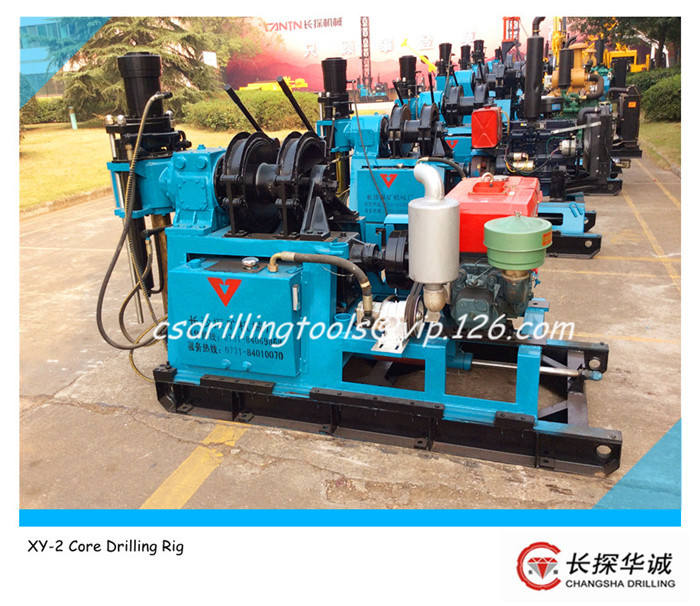

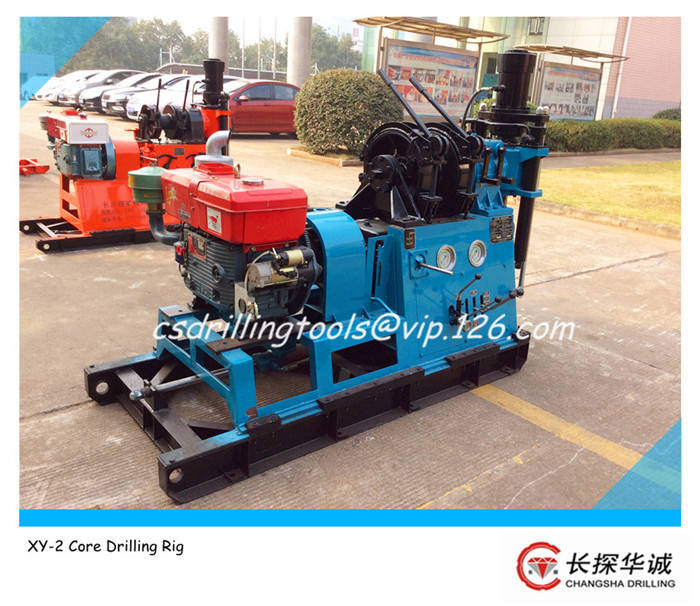

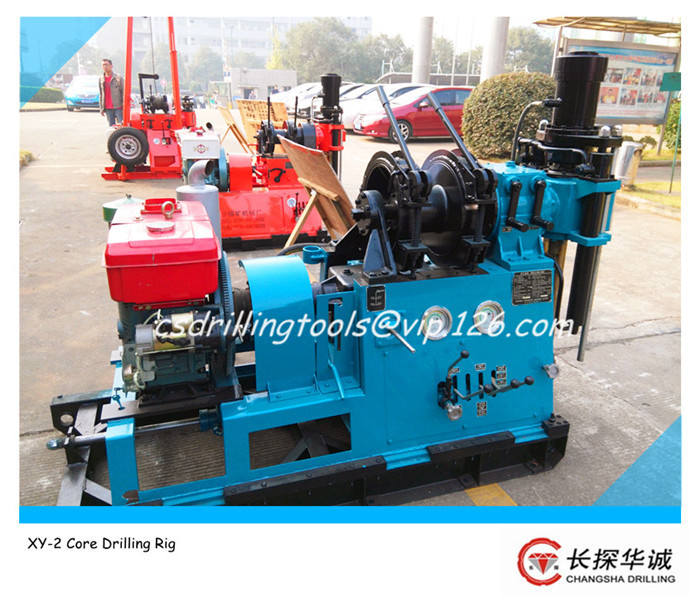

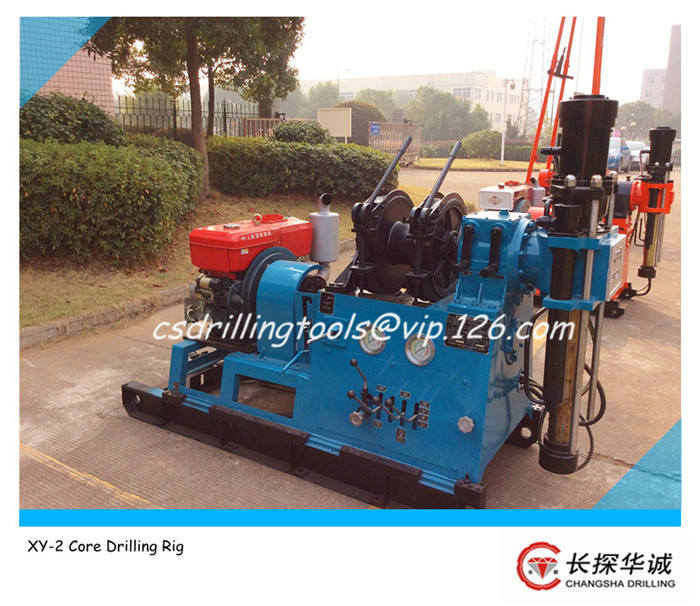

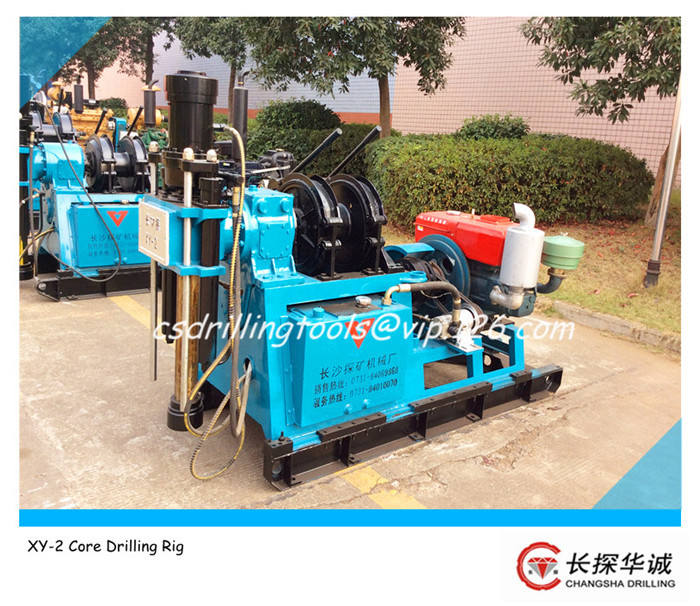

XY-2 Core Drilling Rig

XY-2 drilling rig is a shallow hole drilling rig,it can be applied both in large and small caliber core drilling with alloy or diamond bits,and can also be used in engineering construction such as construction engineering,water and electricity engineering, high way, railway, ports.

Features
1): the rig has eightkinds of rotation speed and rational speed range
2): low rotation speed, big torque, wide range of usage, can do high speed small diameter drilling or relatively lower speed large diameter hole boring
3): two kinds of reverse speed, labour saving and safe
4): large power, diesel engine or electric motor for option
5): advanced structure, reasonable layout, flexible and reliable operation, easy to maintain
6): small size, light weight, easy to be assembled / disassembled, easy to move
7): long feeding stroke of spindle, improving drilling efficiency, reducing sticking drilling tool accident
8): rig can move on frame smoothly, simple and reliable fixation, make a large available space for drilling hole
9): drilling meters are shock resistance, with accurate indication and long serving life
10): hydraulic pin type chuck, clamping reliable, no harm to Kelly
11): Kelly bar has high strength, O.D.58mm, Pin groove O.D.52mm, I.D. 24mm

Drilling Capacity

Drilling depth for BQ drilling rods

400 m

Drilling depth for NQ drilling rods

270 m

Drilling depth for HQ drilling rods

180 m

Drilling depth for PQ drilling rods

130 m

Spindle Turnable Angle

0°~ 360°

Power

Model

Y180M-4 (Electric Motor), L32 (Diesel Engine)

Power

18.5 KW (Electric Motor), 18.5 KW (Diesel Engine)

Rotated speed

1470 r/min (Electric Motor), 1800 r/min (Diesel Engine)

Weight

182 kg (Electric Motor), 212 kg (Diesel Engine)

Rotary Table

Type

Double –cylinder feeding and mechanical rotation

Spindle diameter

60 mm

Spindle speed forward

60, 105, 165, 228, 235, 405, 638, 880 r/min

Spindle speed reverse

47, 182 r/min

Max torque

2700 N*m

Feeding travel of spindle

550 mm

Max uplifting force of spindle

50 KN

Max feeding force of spindle

27 KN

Hoist

Type

Planetary gear transmission system

Diameter of wire rope

14 mm

Bobbin capacity

45 m (6 layer)

Max hoisting force (single rope)

30 KN

Lifting speed - Hoisting velocity (2nd layer)

0.41, 0.71, 1.13, 1.56 m/s

Clutch

Type

A typical 130-type vehicle-specific dry single-disc friction clutch

Hydraulic system



Rated pressure

8 MPa

Max pressure

10 MPa

Oil pump type

Oil Gear Pump (CBF-F420-ALPR)

Displacement

20 ml/r

Rated speed

1500 r/min

Rated pressure

16 MPa

Max pressure

20 Mpa

Frame

Type

Sliding type (with base frame)

Movable travel of drill

420 mm

Distance between drill and hole opening

260 mm



Dimension (length * width * height)

2330 * 1050 * 1620 mm

Weight without engine

980 kg
