Changsha Drilling Machinery CO., LTD

Product name : XY-4T Drilling Rig
Item : 201412316266
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

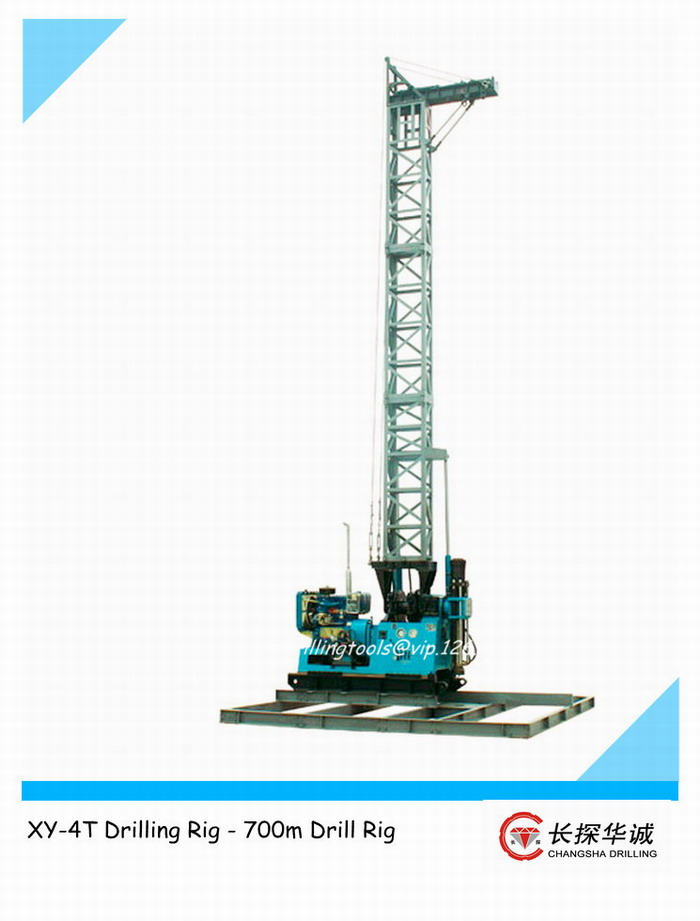

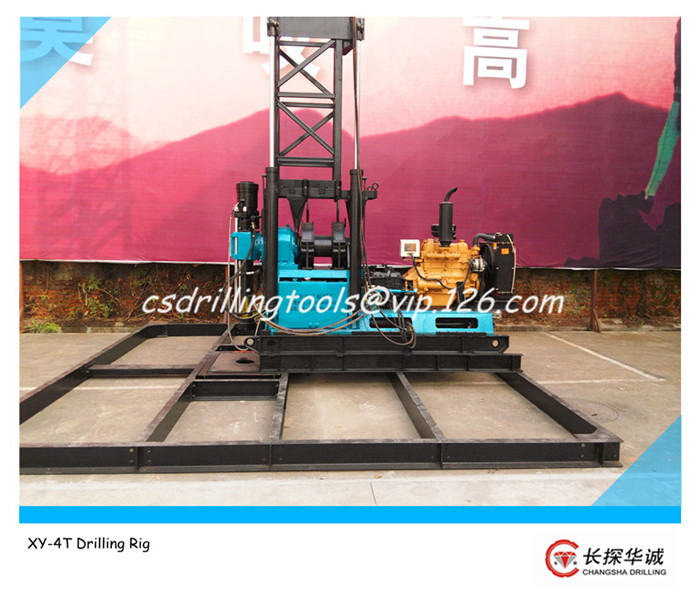

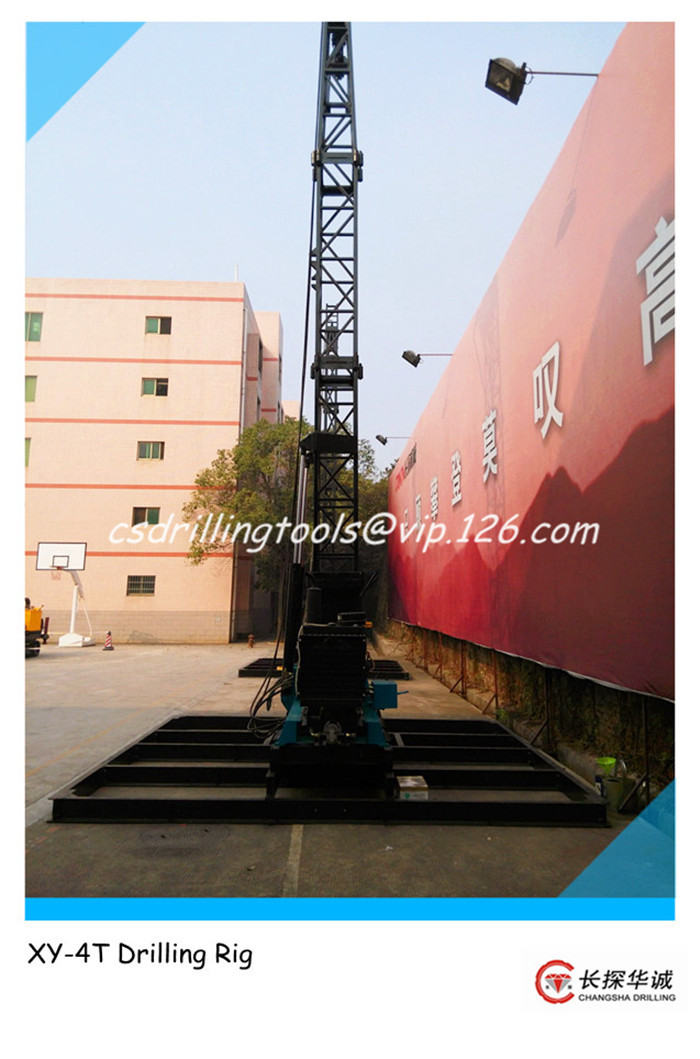

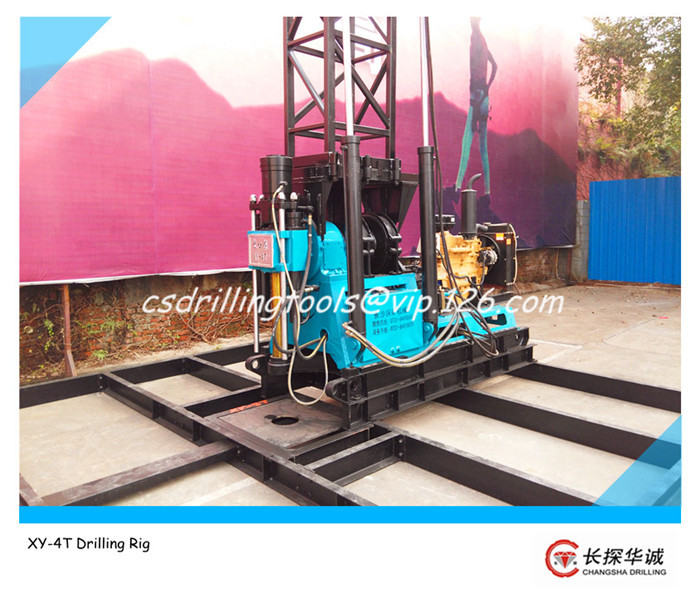

XY-4T Drilling Rig

Applications:
1): Wire line diamond core drilling for exploration of metallic ferrous or nonmetallic solid deposits;
2): Exploration engineering in the field of geology, metallurgy, coal mine,;
3): Shallow oil and gas drilling, mine’s gallery ventilation and water discharge tunneling;
4): Foundation & Construction drilling for high-rise building, highway, railway, bridge, port, harbor work, piling, dam and tunnel.


Features:
1): Reasonable and compact in structure with the auto chassis technology;
2): Easy to operate and maintain with standardized auto parts, such as gear-box, clutch and shifting mechanism;
3): Wide combination of torque and spindle speed;
4): Perfect stability with water brake for deep-hole drilling;
5): Long feed stroke for higher efficiency;
6): Pin type hydraulic chucks in high reliability for drill stem;
7): Designed from the ground up as a compact, powerful, portable, light weight diamond core drilling rig for the remote areas.

Drilling Depth



Drilling Depth

600m~700m

Forward Spindle Speed

48  87  150  230  327  155  280  485  745  1055 r/min

Reverse Spindle Speed

52  170 r/min

Maximum Torque

5757N*m

Spindle Stroke

600mm

Maximum Cylinder lifting force

80KN

Maximum Cylinder driving force

60KN

Spindle Through-hole

84mm

Hoist



Bobbin Diameter

230mm

Rope Diameter

15.5mm

Rope Capacity (7 floor)

89m

Lifting Capacity(single pipe)

48KN

Bobbin line speed (the third layer)

0.46  0.83  1.44  2.21  3.15 m/s

Mobile Oil Cylinder Stroke

460mm

Distance of Step Aside The Hole

280mm

Oil Pump

Wheel oil pump

Diesel Engine (CB-E25)

25mL/min, 2000 r/min, 16MPa

Motor (CB-E40)

40m/r, 2000r/min, 16MPa

Power



Diesel Engine (495K)

36.8KW, 2000r/min

Motor (Y225S-4-B35)

37KW, 1480r/min

Dimensions

2850*1050*1900mm

Weight(power not included)

1600kg
