Product name : LTK Series Double Tube Core Barrels
Item : 2014310151055
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 LTK Series Double Tube Core Barrels

The LTK series core barrel system is a thinner wall core barrel than T2 series. They offer a cost effective, high production, which is designed for optimum production and core recovery in medium to extra hard rock formations. Available sizes are 48mm and 60mm.

Size

Hole diameter

Core diameter

Head thread

LTK48

47.6mm

35.2mm

As per request

LTK60

59.6mm

44.0mm

As per request

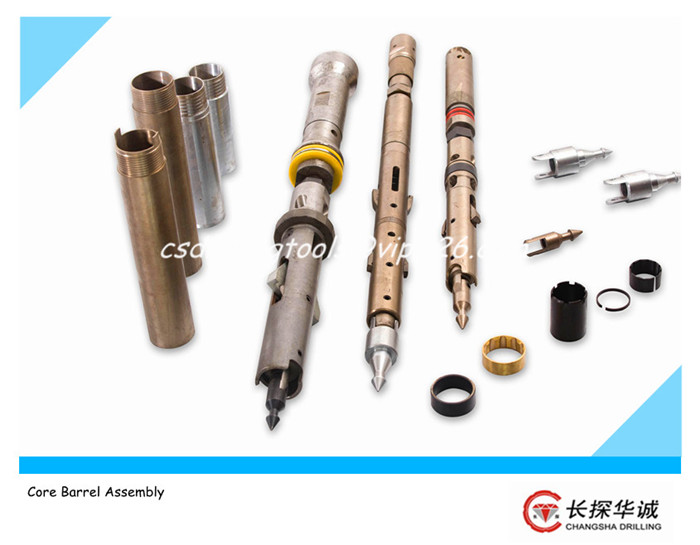

Components

1

Double tube core barrel head

2

Inner tube

3

Core lifter

4

Core lifter case

5

Outer tube

6

Thread protector




Note:

1): Core bit & reaming shell are not supplied with core barrel, and shall be purchase separately

2): 1.5m and 3.0m length core barrels are available
