Product name : XY-1B Portable Drilling Rig with Pump Integrated
Item : 20131115165355
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

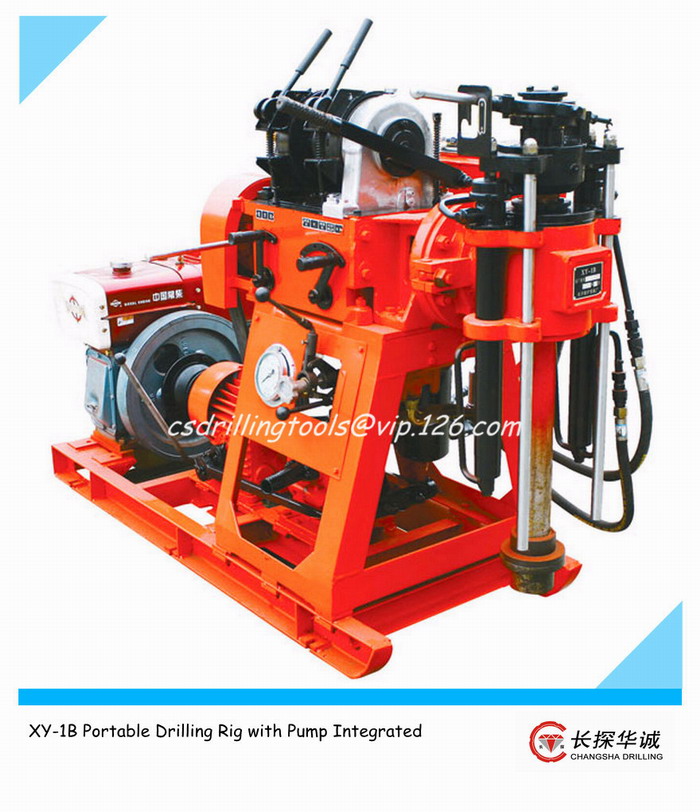

XY-1B Portable Drilling Rig with Pump Integrated

XB-1B is a light high-speed spindle rotary drilling rig, it has been widely applied to the geo-exploration in used for geotechnical engineering drilling in field like construction of industrial and civil buildings, roads, railways and hydropower

Features
1): it is characterized by high rotation speed and it is applicable to core drilling with small-caliber diamond drill bit
2): its hoist adopts a combination of friction cone and planetary gear, with advanced structure. It is suitable for percussive drilling
3): hydraulic feeding, easy to operate and high drilling efficiency
4): its structure is compact, and the pump is mounted on the drill bottom frame, which occupies a smaller area
5): the rotary table adopts a T-shape groove angle-changing device, with a wide angle-changing range, therefore the drill rig is capable of drilling with various inclination
6): no exposure of bevel gear for the case opening, which enables the accuracy and reliability of the falling-in of gears, free from any pollution and with a long service life

Technical Figures

Basic Parameters

Drilling Depth

75  120  150m

Drilling Diameter

130  75  46mm

Drill Pipe Diameter

42mm

Gross Weight of Drilling Machine

480kg

Dimension L*W*H

1800*835*1150 mm

Rotary Table

Speed

140  305  480  1050  r/min

Maximum Torque

550 N*m

Maximum Cylider Driving Force

20kN

Maximum Cylider Lifting Force

30kN

Lifter

Lifting Capacity Single Pipe

10kN

Bobbin Line Speed

0.4  0.87  1.48  3.23  m/s

Bobbin Diameter

100 mm

Rope Diameter

9.3 mm

Rope capacity

18 m

Oil Pump

Type

Gear Oil Pump

Displacement

14 Ml/r

Rated Speed

2500 r/min

Rated Pressure

20 MPa

Maximum Pressure

25 MPa

Slurry Pump

Flow Rate

100 L/min

Max. operating pressure

1.5 MPa

Power – Electric Motor

Type

Y160M-4

Rated Power

11 KW

Rated Speed

1460 r/min

Weight

123 kg

Power – Diesel Engine

Type

ZS1100

Rated Power

12.1 KW

Rated Speed

2200 r/min

Weight

155 kg
