Product name : GY-1 Portable Drilling Rig
Item : 20131115165547
 Enlarge Image                   Back
←[Previous Product]


Details:

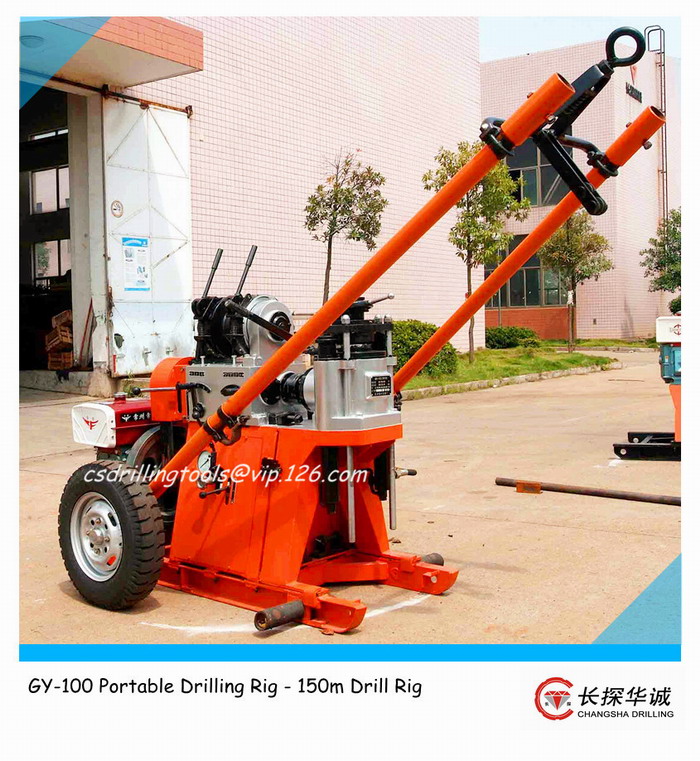

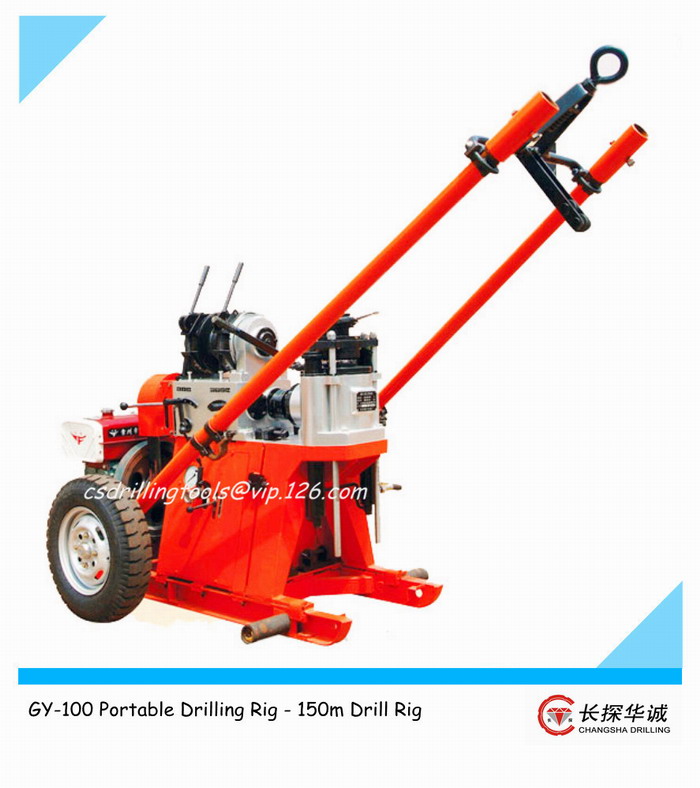

GY-1 Portable Drilling Rig

GY-1 portable drilling rig is a kind of multi-use engineering reconnaissance drill. It can proceed attacking and gyrating drilling, and it can load by sliding or towing. The drilling depth is 20~150m. The drill is used broadly for the engineering geological reconnaissance in industrial and civil architectureenergytraffic and hydroelectricity, it can also used in drilling minor diameter foundation holes.

Basic Parameters

Drilling depth

150   100   20 m

Drilling diameter

46   76   300 mm

Drill pipe diameter

42 mm

Gross weight of drilling machine

450 kg

Dimension (length ×width × height)

1580 × 1080× 1200 mm

Revolving Plate

Rotate speed

48  100  200  350  650 r/min

Maximum torque

2000N*m

Maximum Cylinder driving force

20000N

Maximum Cylinder lifting force

30000N

Lifter

Lifting capacity

15000N

Bobbin linespeed (2 layers)

0.32  0.66  1.24  2.58 m/s

Bobbin diameter

140mm

Rope diameter

11mm

Rope capacity

24m

Drilling Tower

Type

Staircase tower

Height

6m

Oil Pump

Type

CBF-F420-ALP Gear oil pump

Displacement

20 Ml / r

Rated speed

2500 r / min

Rated pressure

20 Mpa

Maximum pressure

25 Mpa

Powder – electric motor

Type

Y160M-4

Rated powder

11 Kw

Rated speed

1460 r / min

Weight

123 kg

Power – diesel engine

Type

ZS1100

Rated powder

12.1 Kw

Rated speed

2200 r / min

Weight

155 kg
