Changsha Drilling Machinery CO., LTD

Product name : BQ Spare Parts Kit
Item : 2015313163711
 Enlarge Image                   Back
←[Previous Product]


Details:

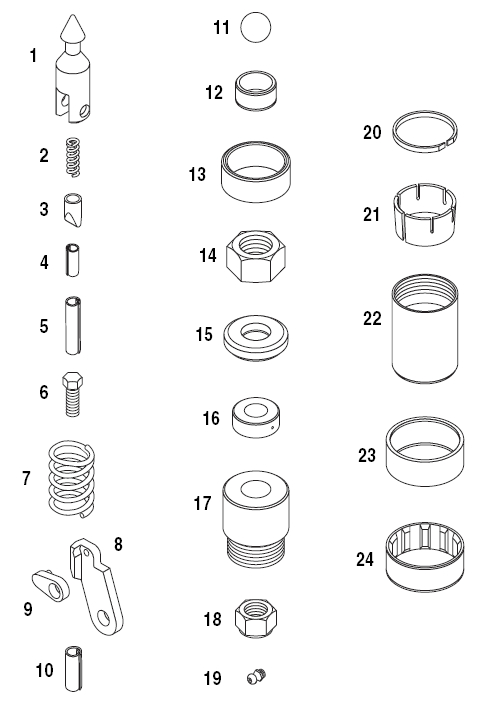

BQ Spare Parts Kit



1~24

BQ Core barrel spare parts kit









1

Spearhead point

1

2

Compression spring

1

3

Detent plunger

1

4

Spirol pin 7/16” X 1”

2

5

Spirol pin 3/8” X 1-11/16”

2

6

Nyloc bolt 3/8” -16UNC X 3/4”

2

7

Latch compression spring

1

8

Latch

4

9

Link

4

10

Spring pin 3/8” X 1-1/4”

2

11

Stainless steel ball, 22mm

1

12

Landing indicator bushing

2

13

Landing shoulder

1

14

Hex nut

1

15

Shut-off valve, Hard

4

16

Thrust/hanger bearing

1

17

Spindle bearing

1

18

Stover lock nut

1

19

Grease fitting

2

20

Stop ring

2

21

Core lifter

20

22

Core lifter case

4

23

Landing ring

2

24

Inner tube stabilizer

2

Spare parts kits are designed to meet the average requirement for 1000m (3300ft) of drilling
