Product name : BW-120QF Mud Pump
Item : 20131115212512
 Enlarge Image                   Back
←[Previous Product]


Details:

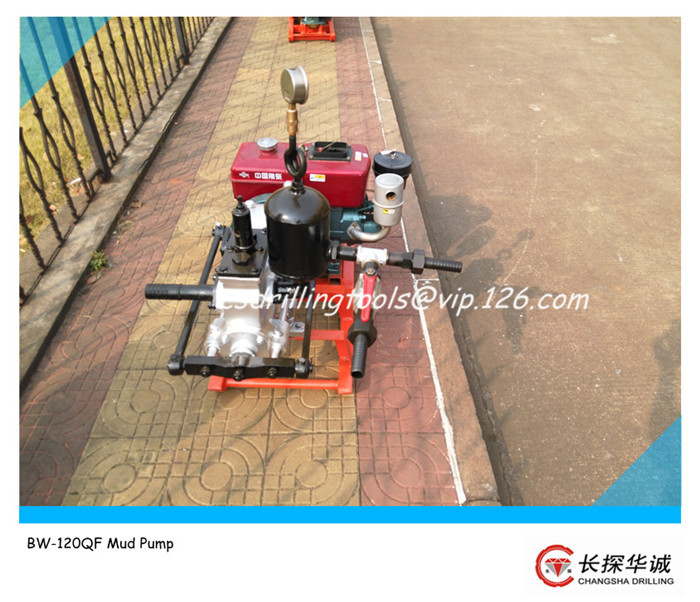

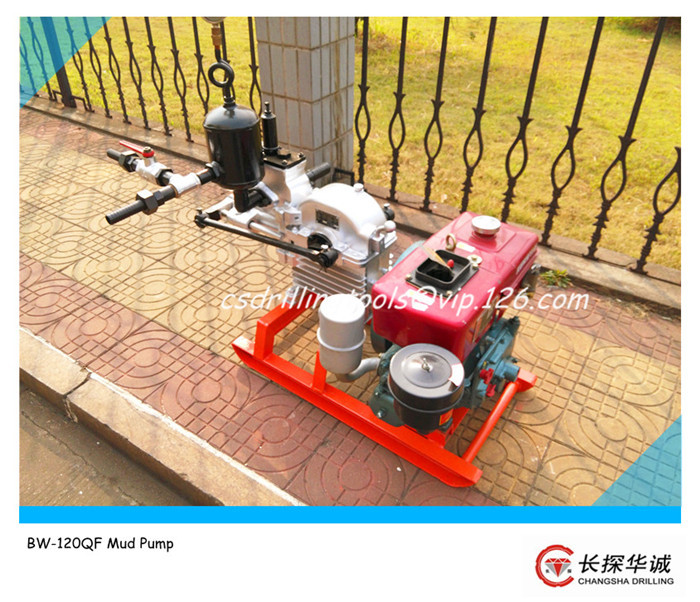

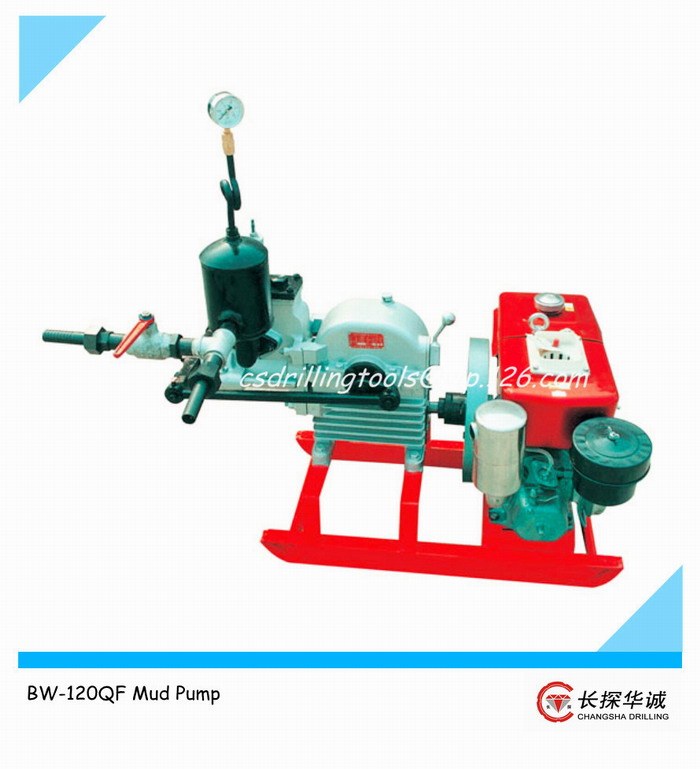

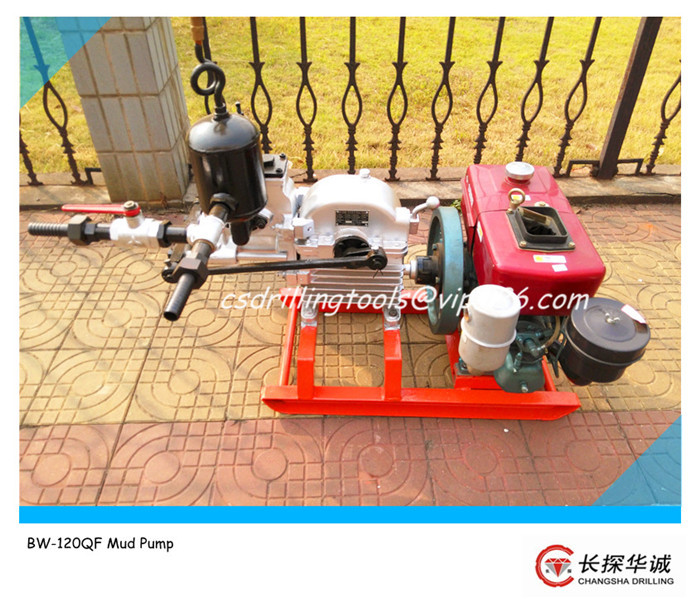

 BW-120QF Mud Pump


The BW-120QF mud pump is a horizontal 、single-cylinder double-acting 、reciprocal piston pump, It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for the specialty of small external dimension、light weight, the pump is suitable for transportation in mountain.



Technical Figures (for reference)

Type

Horizontal single-cylinder double-acting reciprocal piston pump

Cylinder diameter

80 mm

Stroke

120 mm

Reciprocate times

126 times/min

Displacement

120 liter/min

Pressure

1.4 MPa

Input power

4.41 KW

Suction pipe diameter

38 mm

Discharge pipe diameter

25 mm

Power

Type

R175A (Diesel Engine), Y112M-4 (Electric Motor)

Rated power

4.41 KW (Diesel Engine), 4KW (Electric Motor)

Rated speed

2600 r/min (Diesel Engine), 1440 r/min (Electric Motor)

Weight within engine

Approx 120kg

Dimensions (Length * width * height)

1030 * 570 * 780 mm
