Changsha Drilling Machinery CO., LTD

Product name : HQ Spare Parts Kit
Item : 2015316162451
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

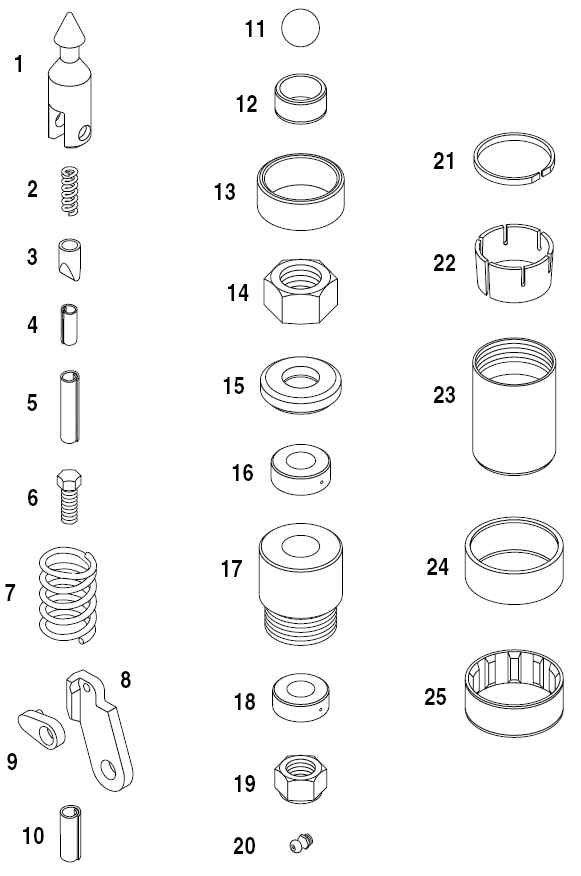

HQ Spare Parts Kit

1~25

HQ core barrel spare parts kit





1

Spearhead point

1

2

Compression spring

1

3

Detent plunger

1

4

Spirol pin 7/16” X 1”

2

5

Spring pin 1/2” X 2-3/4”

2

6

Nyloc bolt 3/8” – 16UNC X 3/4”

2

7

Latch compression spring

1

8

Latch

4

9

Link

4

10

Spring pin 1/2” X 2”

2

11

Stainless steel ball, 22mm

1

12

Landing indicator bushing

2

13

Landing shoulder

1

14

Hex nut

1

15

Shut-off valve, hard

4

16

Thrust bearing

2

17

Spindle bearing

1

18

Hanger bearing

1

19

Stover lock nut

1

20

Grease fitting

2

21

Stop ring

2

22

Core lifter

20

23

Core lifter case

4

24

Landing ring

2

25

Inner tube stabilizer

2

Spare parts kits are designed to meet the average requirements for 1000m (3300ft) of drilling
