Changsha Drilling Machinery CO., LTD

Product name : PQ Spare Parts Kit
Item : 2015317114557
 Enlarge Image                   Back
             [Next Product]→


Details:

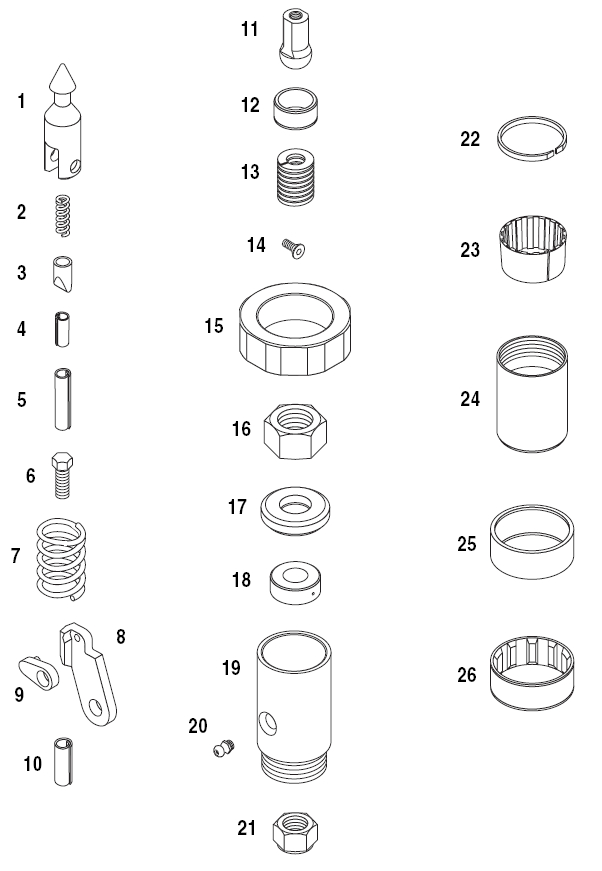

PQ Spare Parts Kit

1~27

PQ Core Barrel Spare Parts Kit





1

Spearhead point

1

2

Compression spring

1

3

Detent plunger

1

4

Spirol pin 7/16” X 1”

2

5

Spring pin 1/2” X 2-3/4”

2

6

Nyloc bolt 3/8” – 16UNG X 3/4”

2

7

Latch compression spring

1

8

Latch

4

9

Link

4

10

Spring pin 1/2” X 2”

2

11

Steel threaded ball, 22mm

1

12

Fluid retention bushing

1

13

Fluid retention spring, light

1

14

Nylon insert machine screw

2

15

Landing shoulder

1

16

Hex nut

1

17

Shut-off, valve, hard

4

18

Thrust bearing

2

19

Spindle bearing

1

20

Grease fitting

2

21

Stover lock nut

1

22

Stop ring

2

23

Fluted core lifter

20

24

Core lifter case

4

25

Landing ring

2

26

Inner tube stabilizer

2

27

Drift tool (not shown)

1
