Product name : BW-160-10 Mud Pump (Three-cylinder)
Item : 20131115213125
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

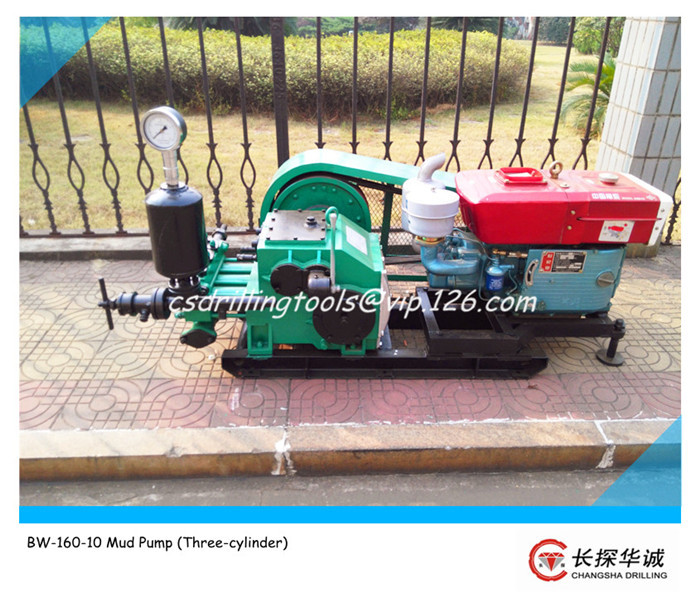

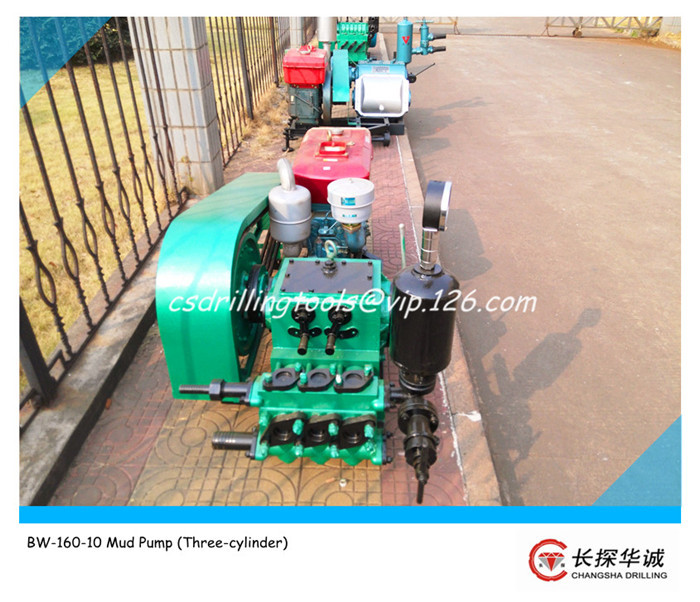

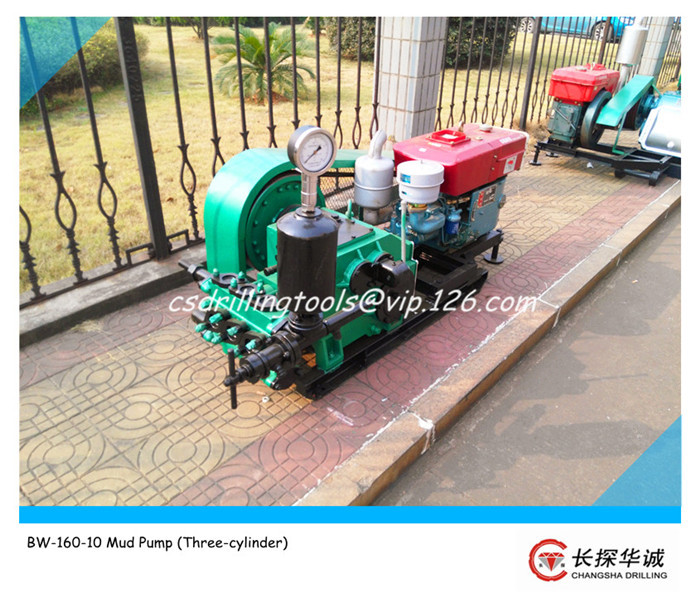

BW-160-10 Mud Pump (Three-cylinder)

BW-160/10 mud pump is a light horizontal triplex single action reciprocating piston pump, it has many good features like small size, light weight, long life, easy to be transported, good performance, and using many standard or universal industrial parts. It is suitable for geological prospection. geological engineering drilling within 1000 meters in various like railway, water conservancy, metallurgy, construction and geology.

Technical Figures

Type

Horizontal triplex single action reciprocating piston pump

Cylinder diameter

70 mm

Stroke

70 mm

Pump speed

200

132

83

55

Displacement

160

107

67

44

Pressure

2.5

4

6.5

10

Volume efficiency

100 %

Total efficiency

75%

Input torque

150 Nm

Input speed

610 r/min

Input power (Electric motor)

11 KW

Input power (Diesel engine)

14.7 KW

Suction pipe diameter

51 mm

Discharge pipe diameter

25 mm

Weight (with electric motor)

500 kg (Y160M-4-B3)

Weight (with diesel engine)

560 kg (ZS1110)

Dimension (with electric motor)

1525 * 830 * 950 mm

Dimension (with diesel engine)

1920 * 830 * 1000 mm
