Product name : XD-35DB Top Drive Drilling Equipment
Item : 201672910190
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

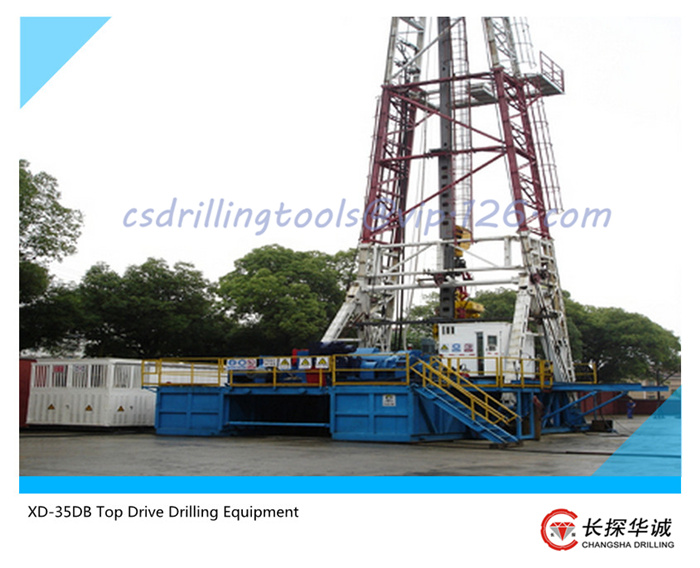

XD-35DB Top Drive Drilling Equipment

XY-35DB tope drive drilling equipment is a new deep-hole coring rig manufactured on the basis of strong developing capacity of China geological equipment group Co., Ltd. And sophisticated oil drilling techniques. The drilling capacity of this deep-hole drilling machine reaches NQ drill rod 3500 meters



#

Item

Specification

1

Drilling capacity





NQ or 71mm wire line rod (m)

≥3500



HQ or 89mm wire line rod (m)

≥2500



PQ or 114mm wire line rod (m)

≥1800

2

Drill tower





Structure

K type



(m)

≥30.6



Max. Hook load (KN)

≥1300

3

Platform





(m)

2.2



Stacking capacity (m)

3500



Loading capacity (KN)

≥1100

4

Electric-control system





Inverter cabinet (KW)

≥450



Driller electric control platform

Include cabinet, touch screen



Driller room

Multiple control

5

Top drive





Drive mode

AC variable frequency motor



Rated torque (Nm)

≥7000



Max. torque (Nm)

≥12500



Rotational speed (RPM)

≥500



Loading capacity (KN)

≥600



Stroke (m)

≥18

6

Main draw-works





Drive mode

AC variable frequency motor



Brake mode

Primary brake: hydraulic disc auxiliary brake: dynamic brake



Power (KW)

300



Max. Hook speed (m/min)

≥1.5



Disc brake torque (KN m)

≥30

7

Drilling feed control





Control mode

AC variable frequency motor



Drilling accuracy (N)

≤3000

8

Draw-works





Engine

Electromotor



Hoist (KN)

≥20 (bare drum)



Hoist speed (m/min)

≥120 (bare drum)



Pump





Displacement (L/min)

≥300



Pressure (Mpa)

≥25
