 XY-1 Core Drill Rig

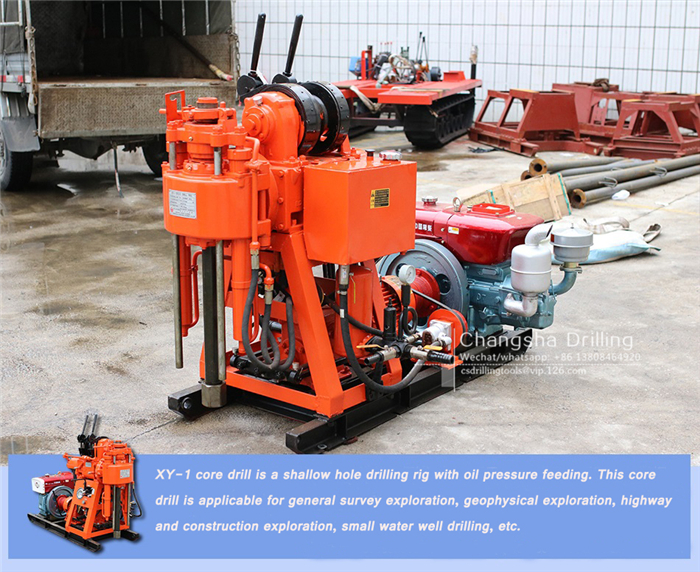

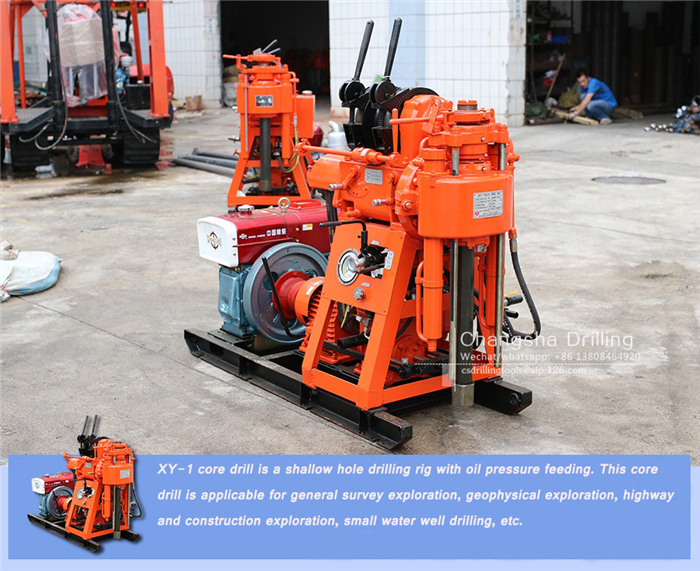

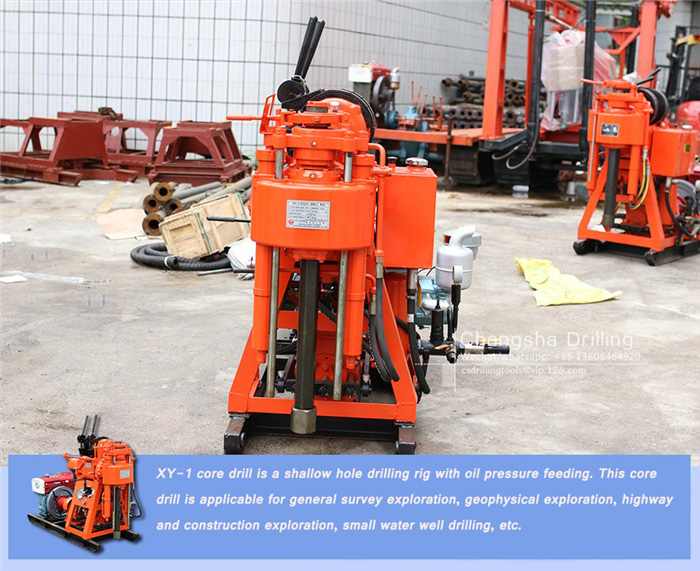

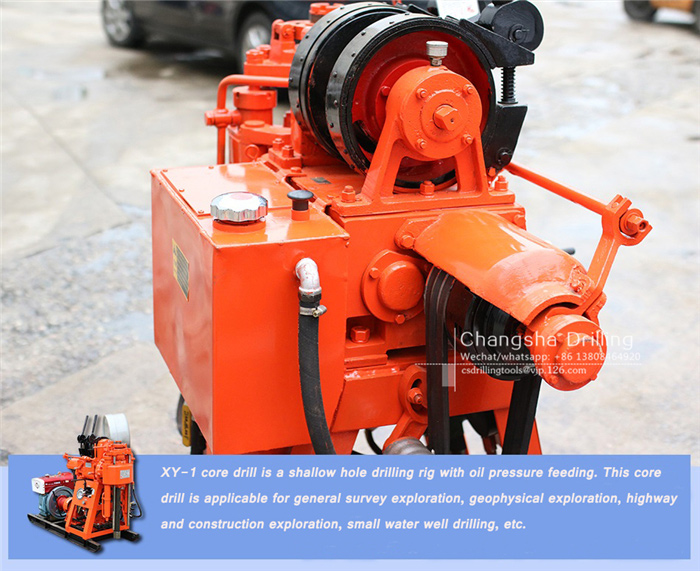

XY-1 core drill is a shallow hole drilling rig with oil pressure feeding. This core drill is applicable for general survey exploration, geophysical exploration, highway and construction exploration, small water well drilling, etc.



Features:

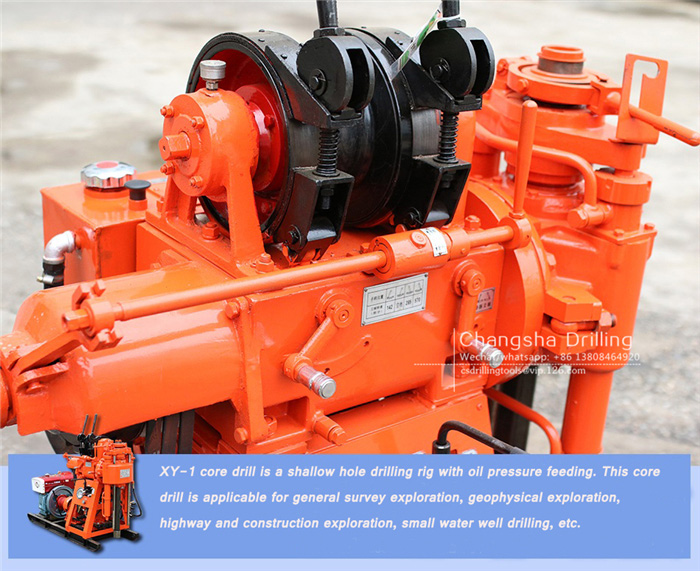

1: automatic feeding mechanism realized by oil pressure helps to improve drilling efficiency and reduce labor intensity

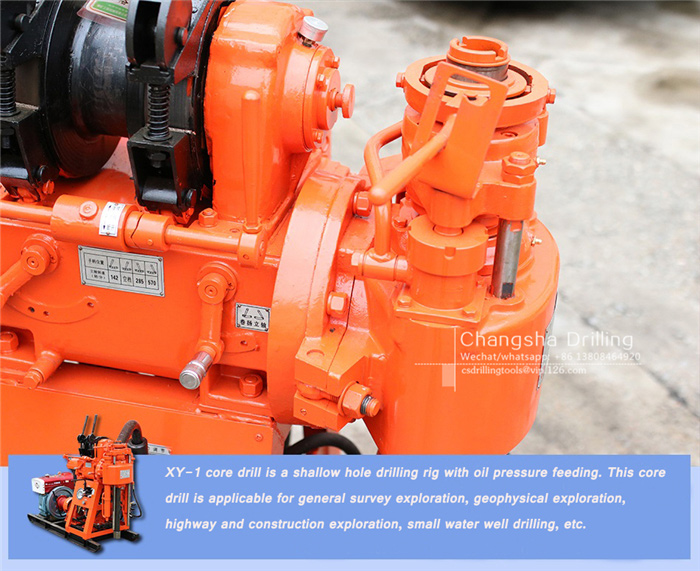

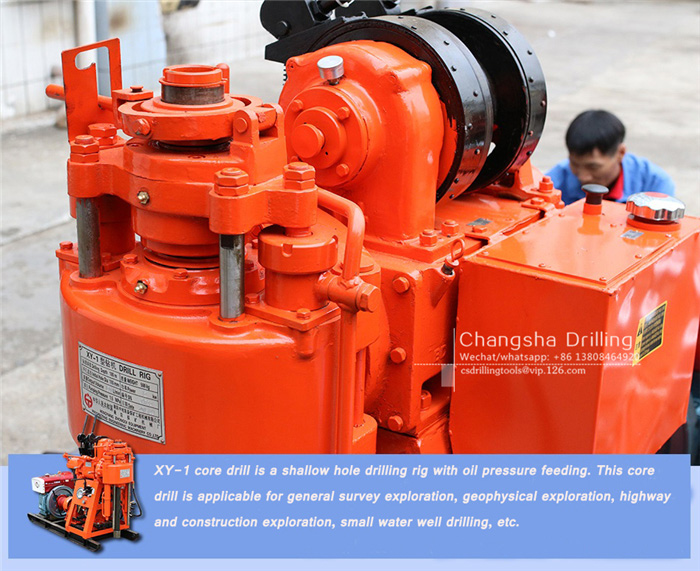

2: ball cassette clamping mechanism helps to realize convenient, safe and reliable operation

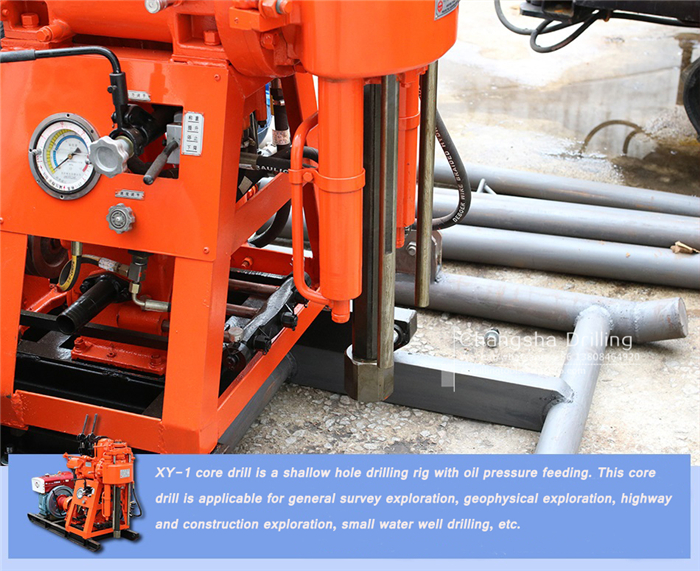

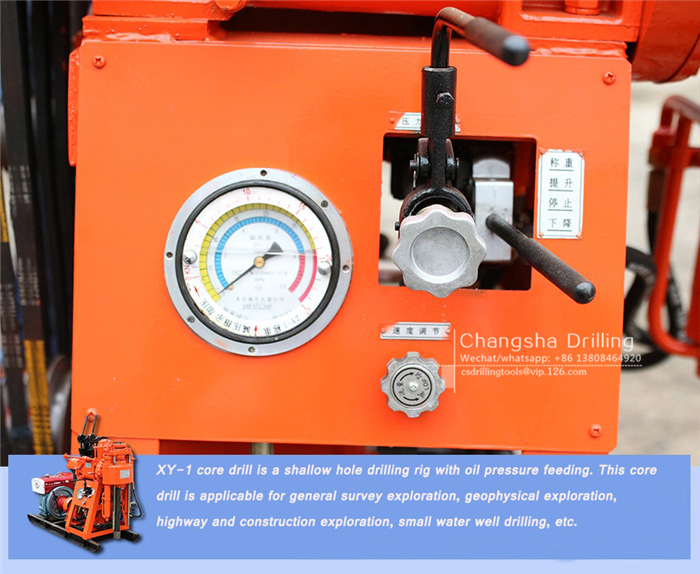

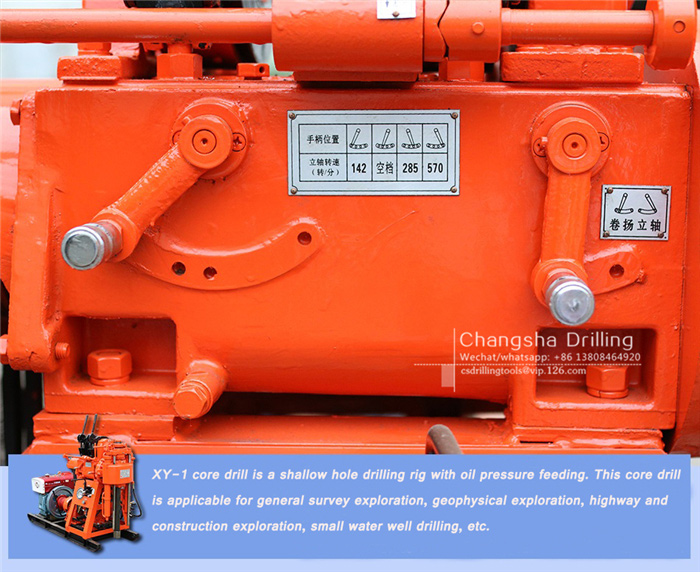

3: easily operated handles. Pressure gauge at the bottom of hole can indicate the pressure, facilitating controlling conditions of the hole

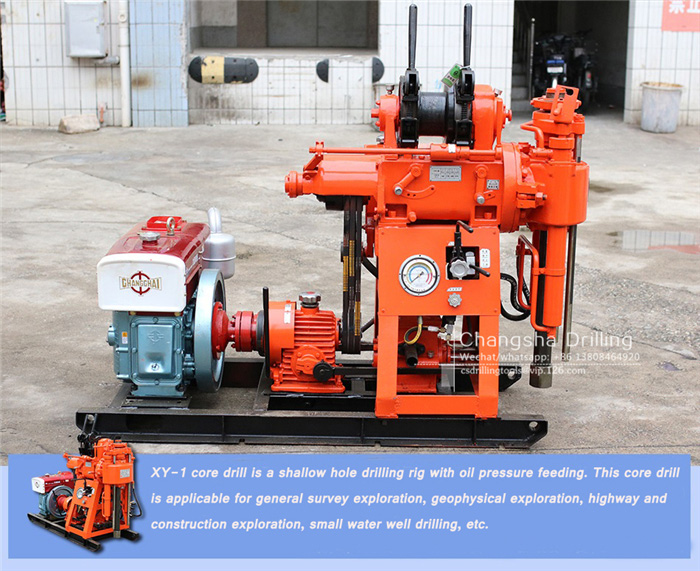

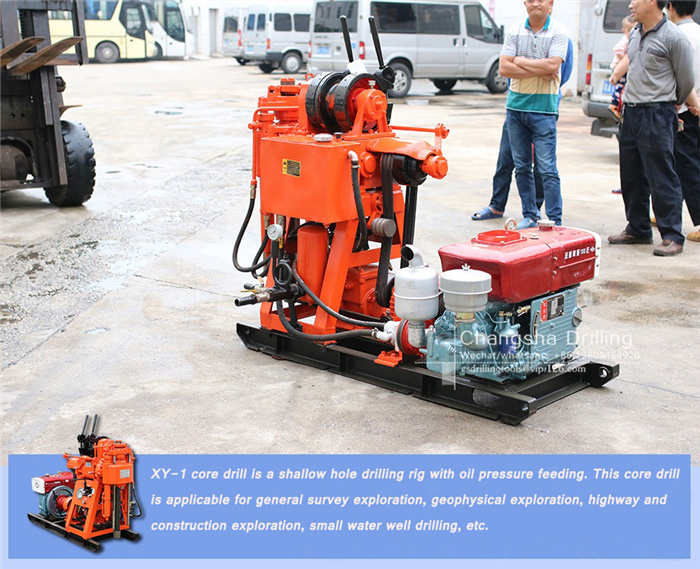

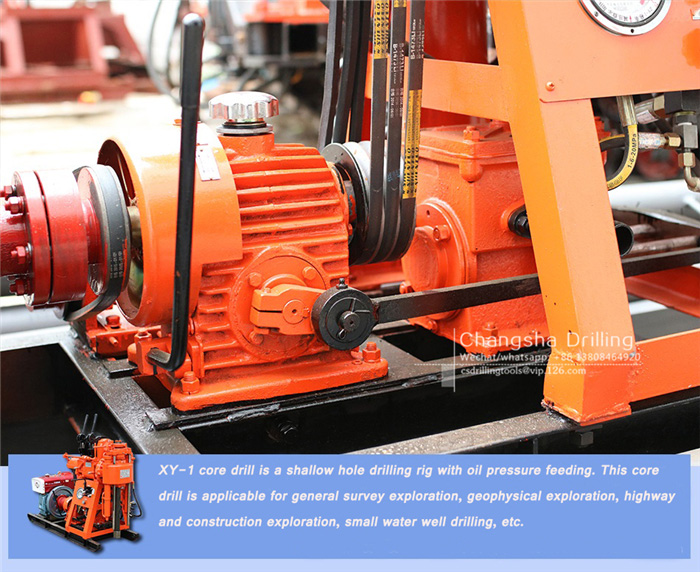

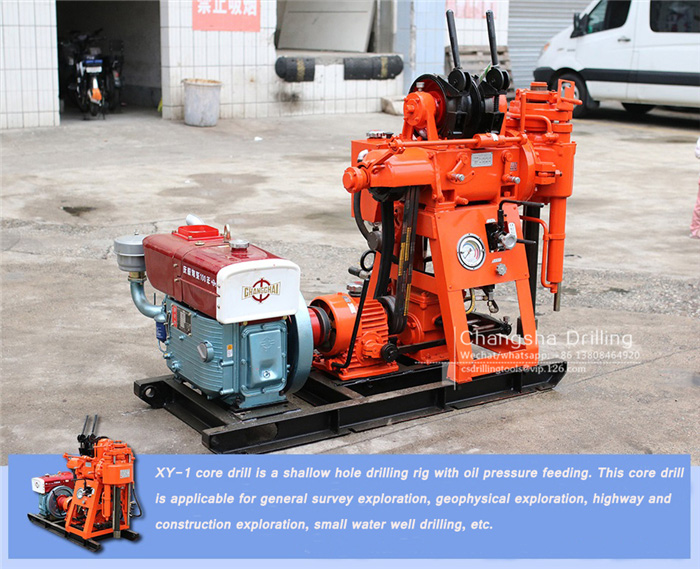

4: compact structure with the drill rig, water pump and power machine (diesel engine or electromotor) assembled on the same chassis

5: light weight as well as easy to assembly, disassembly and move



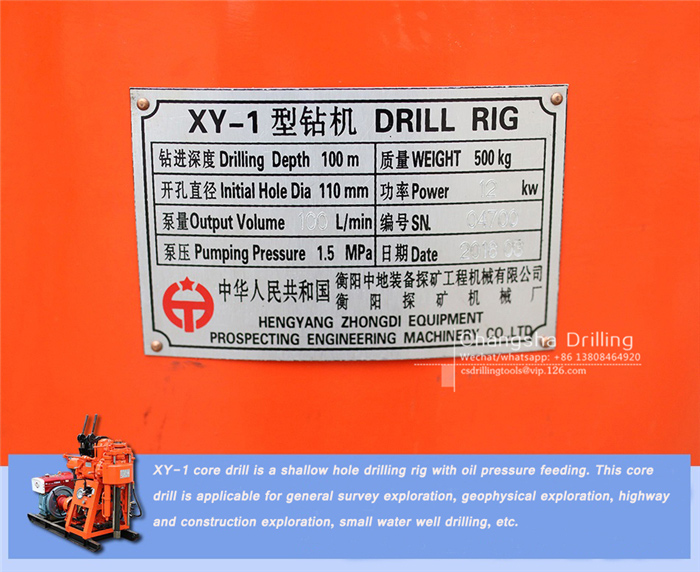

Specification:

Basic parameter

Drilling depth (m)

100

Final hole diameter (mm)

75

Drill rod diameter (mm)

42

Dimension (L*W*H)(mm)

1640*920*1240

Weight (kgs)

500

Spindle

Rotational speed (r/min)

142, 285, 570

Stroke (mm)

450

Max. feeding force (N)

14700

Max. hoist force (N)

24500

Winch

Max hoist (1 speed, single rope) (N)

10000

Rotational speed (m/s)

0.42; 0.81; 1.68

Water pump

Model

Horizontal dual-acting single piston pump

Displacement (L/min)

Diesel engine (1800r/min): 100

Electric motor (1500r/min): 83

Pump pressure

Max. pressure (Mpa)

1.5

Continued pressure (Mpa)

0.7

Power machine

Diesel engine model

S1100N

Rated speed (r/min)

2200

Power for 12 hours (KW)

10.53

Electromotor model

Y131M-4-B3

Rated rotational speed (r/min)

1500

Rated power (KW)

7.5
