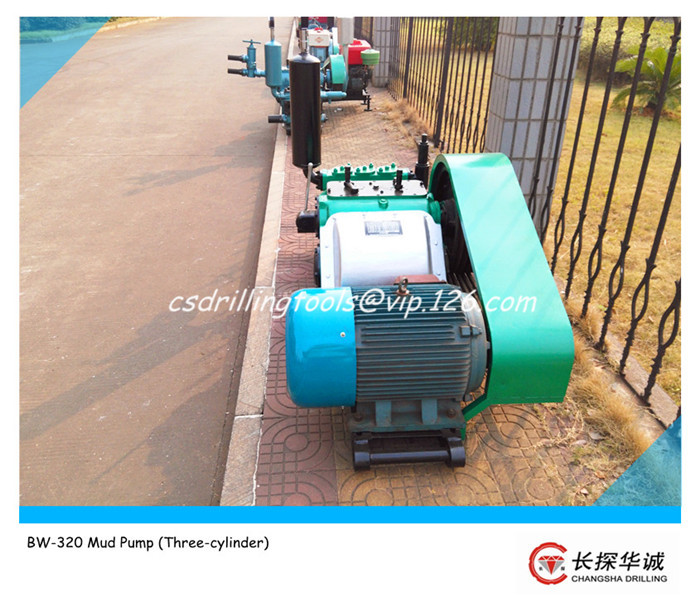

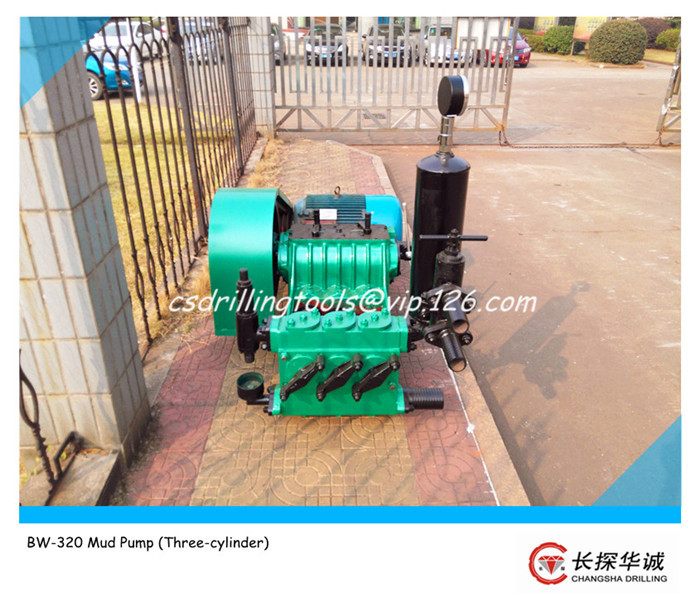

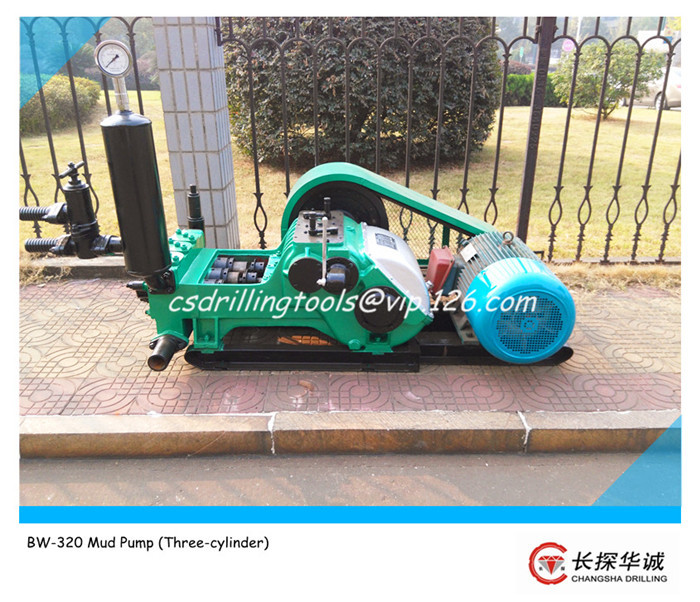

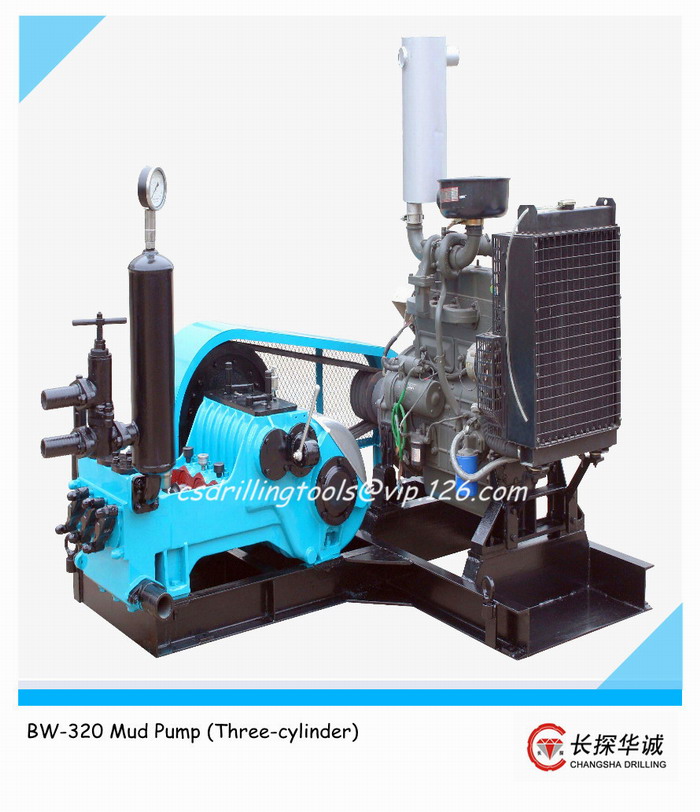

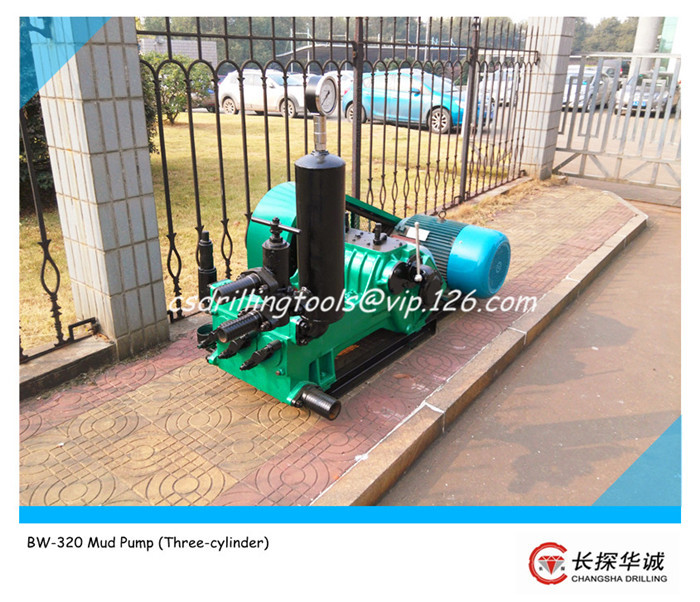

BW-320 Mud Pump (Three-cylinder)

BW-320 Mud Pump is a new product designed for newly developed hydraulic impact drilling, auger drilling, turbo drilling technology in recently dears, it can not only supply drilling flush (mud or clear water) for core drilling to bring drilling cuttings from hole to surface, make the drilling hole clean cool and lubricate drill bits. Protect the sidewall from collapse, but also can be used as energy supply to drive the impact (auger or turbo) to drill. Therefore, this pump is very important for modern drilling activities. BW-320 Mud Pump is especially suitable for Grouting application in all kinds of soft foundation.

As a horizontal three-cylinder single action reciprocating plunger pump, BW-320 has two different cylinder diameter and four gear speed which brings different displacement for option. It can be used for hydraulic impact drilling pump within depth 1000 meters. Advanced designing concept in the industry and new materials are adopted for this pump, particularly crank case and gearing box are integrated to a entire body, hence it has reliable performance, long life for easy-wearing part, small dimension and light weight, as well as easy to disassemble and reassemble, easy to move in mountain areas. The pump is an ideal product for geological exploration, as well as for vivil engineering drilling work, sugar production, wine production, irrigation and other applications





Technical Figures



Type

Horizontal 3 cylinder single action reciprocating plunger

Travel

110 mm

Cylinder diameter 80 mm

Pump speed

214 r/min

153 r/min

109 r/min

78 r/min

Displacement

320 L/min

320 L/min

165 L/min

118 L/min

Pressure

4 MPa

5 MPa

6 MPa

8 MPa

Cylinder diameter 60 mm

Pump speed

214 r/min

153 r/min

109 r/min

78 r/min

Displacement

180 L/min

130 L/min

92 L/min

66 L/min

Pressure

6 MPa

8 MPa

9 MPa

10 MPa

Volumetric efficiency

90%

Total efficiency

78%

Power needed

30KW

Input speed

535 r/min

Suction height

2.5 m

Suction pipe diameter

76 mm

Discharge pipe diameter

51 mm

Dimension – single pump without engine and air chamber

1280 * 855 * 720 mm

Dimension – entire pump with engine and air chamber

1905 * 1100 * 1200 mm

Weight - single pump without engine and air chamber

650 kg

Weight - entire pump with engine and air chamber

1000 kg
