Products > Drill Rod > Wire Line Drill Rods > H Wireline Core Rods
Product name : H Wireline Core Rods
Item : 20131118103744
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

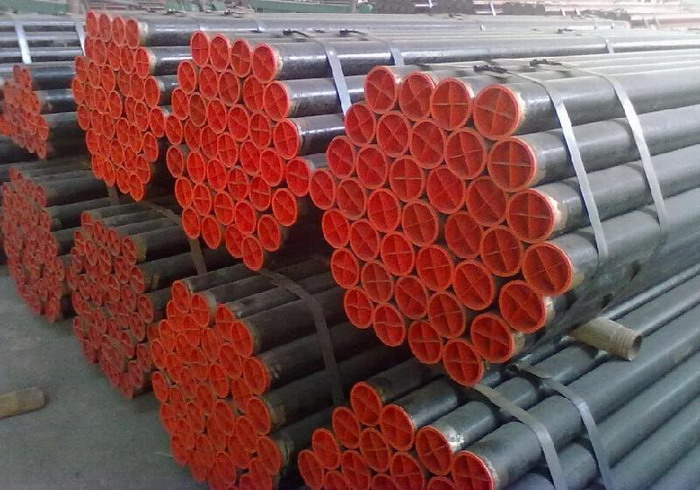

H Wireline Core Rods

Designed to be used under 750 (900) m

Rod outer diameter

89.0 mm

Rod inner diameter

77.8 mm

Standard rod length

1.5 m / 3.0 m

Standard rod weight

11.51 kg/m

1.5m rod total weight

17.26 kg

3.0m rod total weight

34.5 kg

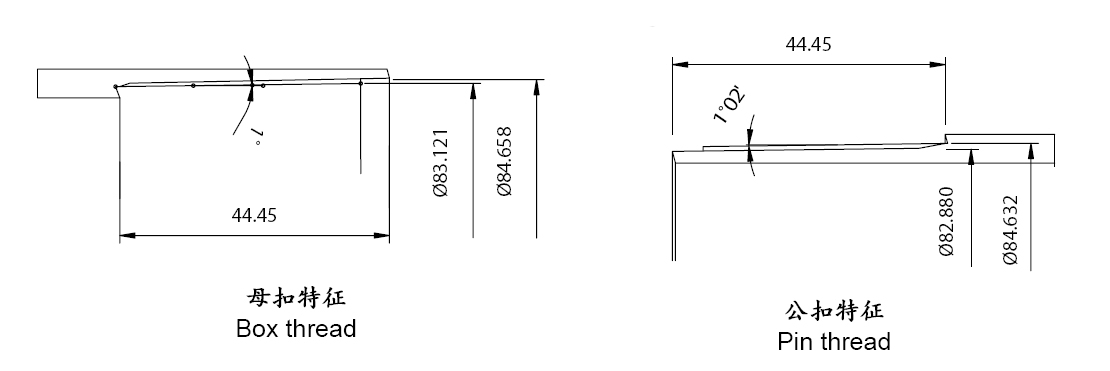

Thread features



Thread parameters

Thread length

45.45 mm

Thread pitch

3 thread/inch

Thread tooth height – box thread

0.76 mm

Thread tooth height – pin thread

0.88 mm

Thread tooth angle

29°

Tensile resistance

510 ~ 625 KN



Rod parameters

Tempering

HRC 30

Thread tensile strength

900 ~ 950 Mpa

Thread yield strength

800 ~ 850 Mpa

Thread torsional strength

MAX 9.15 ~ 10.2 KN·m

Recommended bore depth

750 ~ 900 m
